LED Bar

Overview

Features:

  • 40 RGB LEDs
  • 64000 colours per LED
  • full brightness on each LED/colour possible



This project was inspired by some larger light effects I've seen on buildings. I decided to try aranging 40 RGB LEDs to a 1m bar and see how it looks.

Please note: I still get questions about the schematics. This was one of my earlier microcontroller based projects and is a rather questionable approach (i.e. WAY too much work). Things evolved a lot since then, so if you plan to build something similar, just use a strip of WS2812B LEDs.

Construction

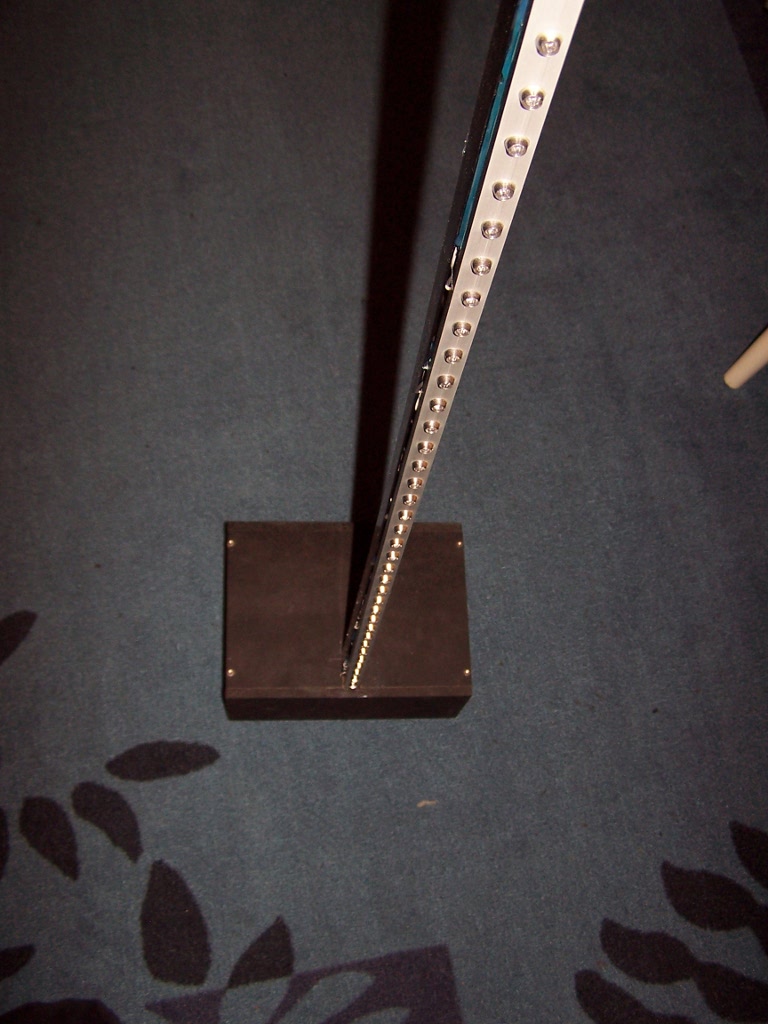

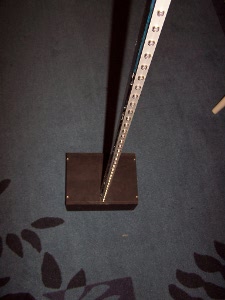

The LEDs are mounted to a 1m aluminium profile (u-shaped). It was some work to solder the 120 wires...

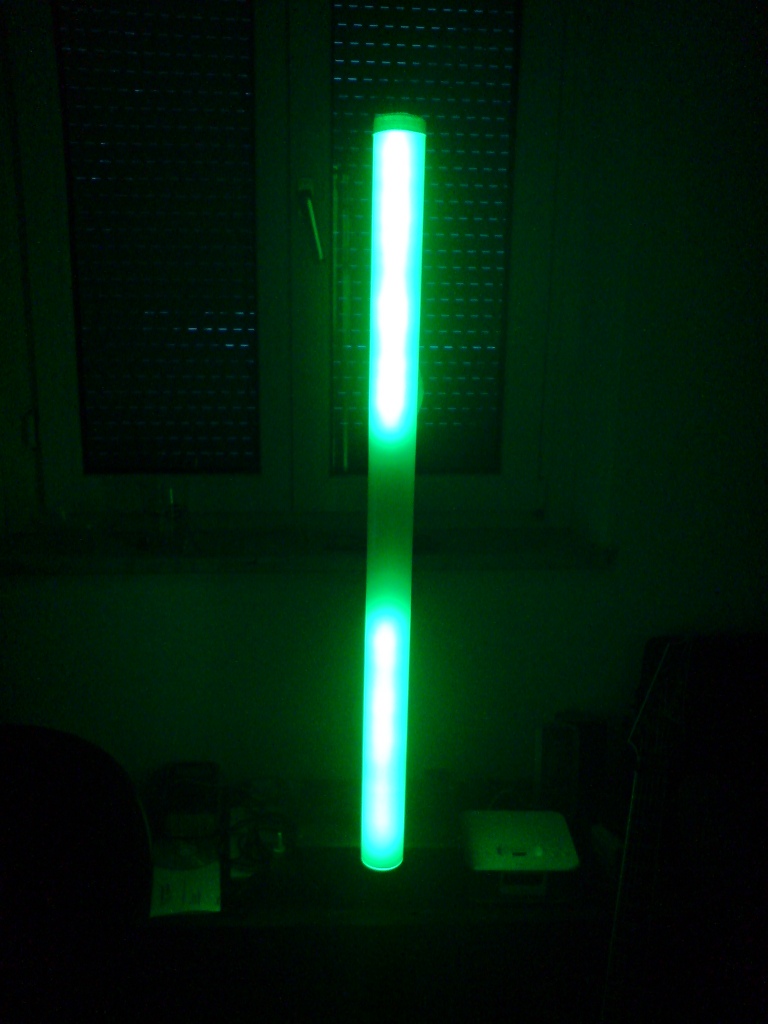

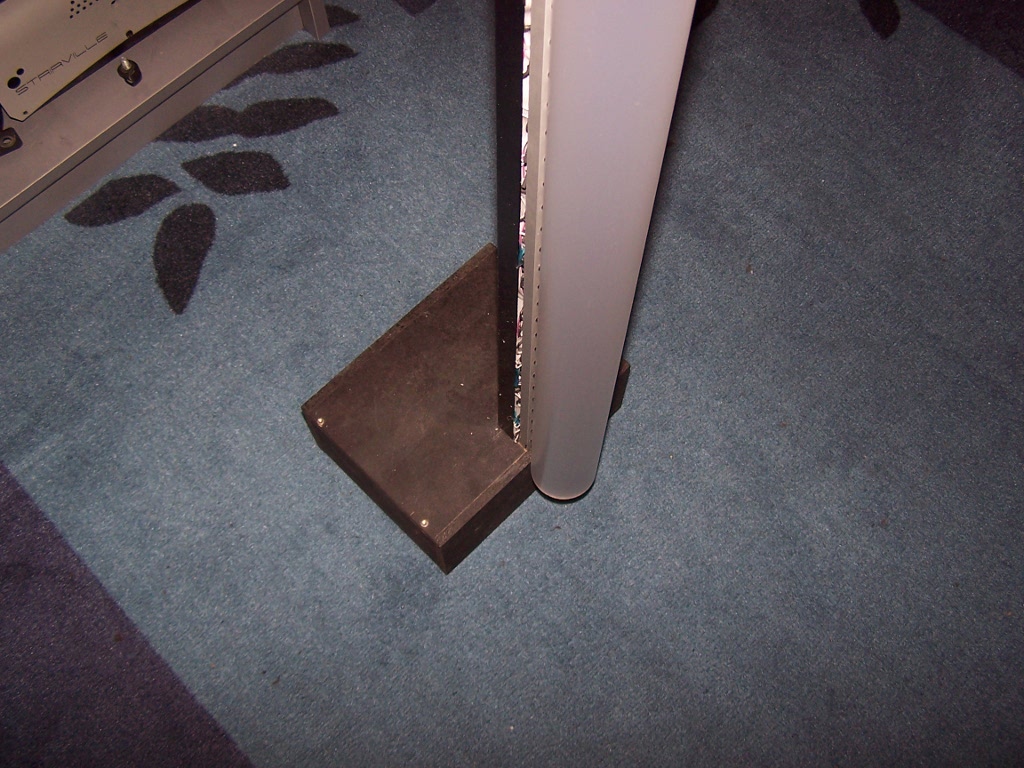

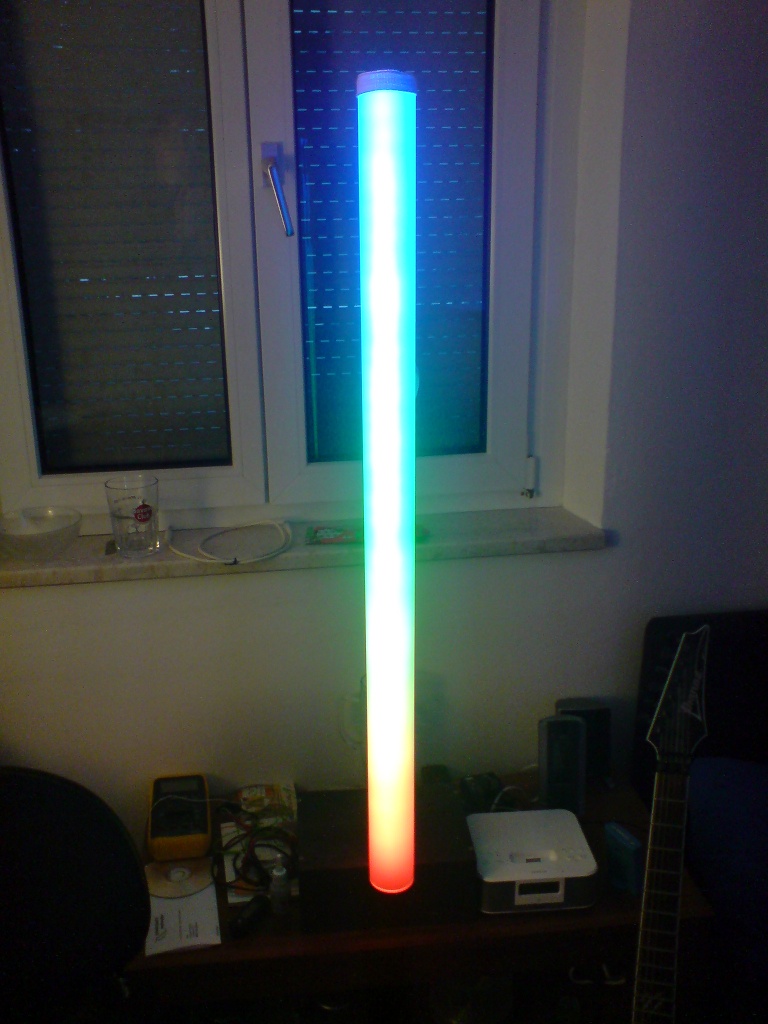

This version did not look bad, but multi chip LEDs do not mix the colors properly, so I bought a 1m frosted acryl glass pipe. Again, not bad, but I figured out it looks best if you mount the whole pipe in front of the LEDs.

Control Unit

I used a ATMega16 for this one, controlling 15 74HC573. In order to get full brightness, I used 18 ULN2003 to sink each chip with full 20mA.
